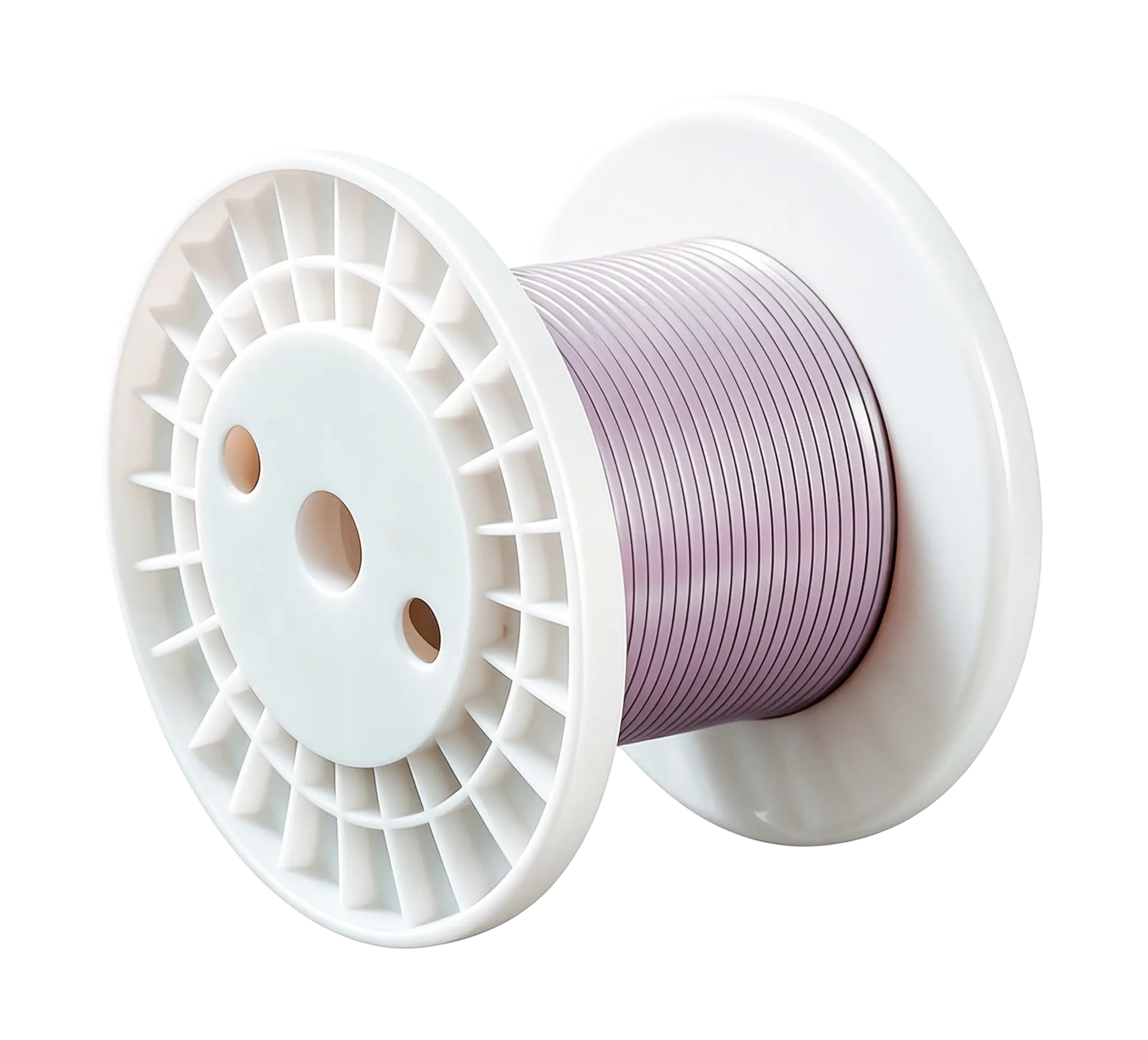

Extruded PEEK Wire

Product Code: *EKW(*)

Thermal Class: 240°C

Conductor Size (Flat): 0.30 ≤ Width ≤ 15.00 mm

0.20 ≤ Thickness ≤ 5.00 mm

Conductor Size (Round): ∅0.65-4.20 mm

Note: PEEK Flat wire only has three insulation thickness Grade 0 to Grade 2.

Note: The above data is for reference only, and the specific test shall prevail.

► High continuous operating temperature up to 260°C.

► Excellent abrasion resistance and mechanical properties.

► Outstanding dielectric properties with high PDIV.

► Excellent chemical resistance(lubrication oil,ATF oil,impregnating varnish).

Drive motors and generators for new energy vehicles, as well as traction motors for aerospace, wind power and rail transportation, have excellent performance, especially in high-voltage platforms such as 800V and continuous wave winding designs.
